EO Seeker

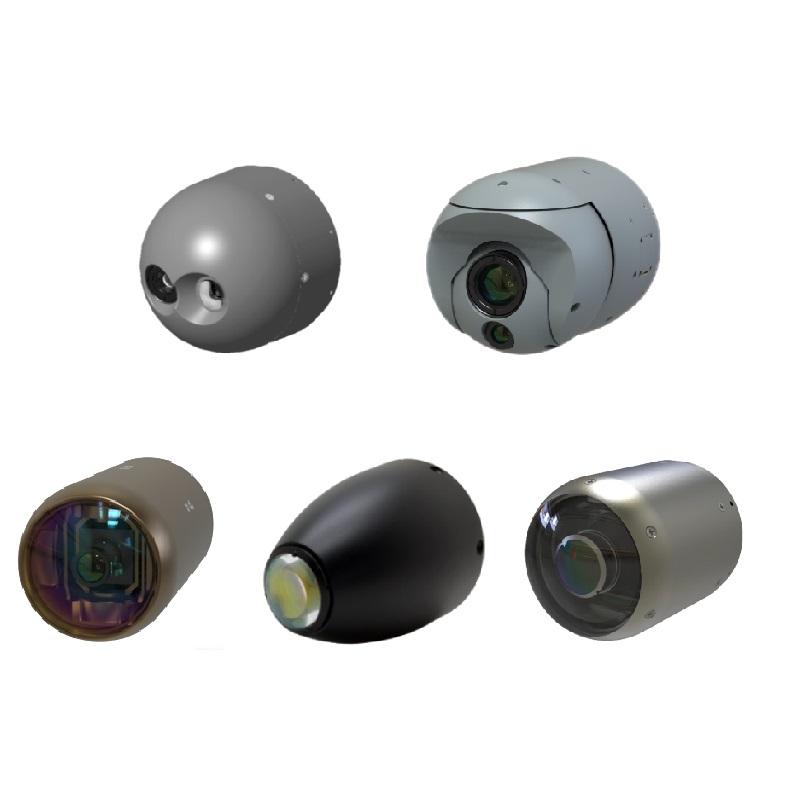

This series of advanced seekers integrates multiple imaging and guidance technologies to enable precise target detection, recognition, tracking, and engagement across various operational environments. Designed for mission flexibility and high reliability, these systems support both imaging and laser-based guidance, with options for strapdown or gimballed configurations to meet diverse tactical requirements.

Request a Quote Email

Our seeker product line offers a versatile range of guidance solutions combining electro-optical imaging and laser-based technologies. Whether in strapdown or gimballed form, each system is engineered to deliver high-precision target detection, autonomous tracking, and reliable guidance under demanding conditions. With dual-mode imaging, real-time angular measurement, and robust stabilization features, these seekers ensure enhanced accuracy and mission success for modern tactical platforms.

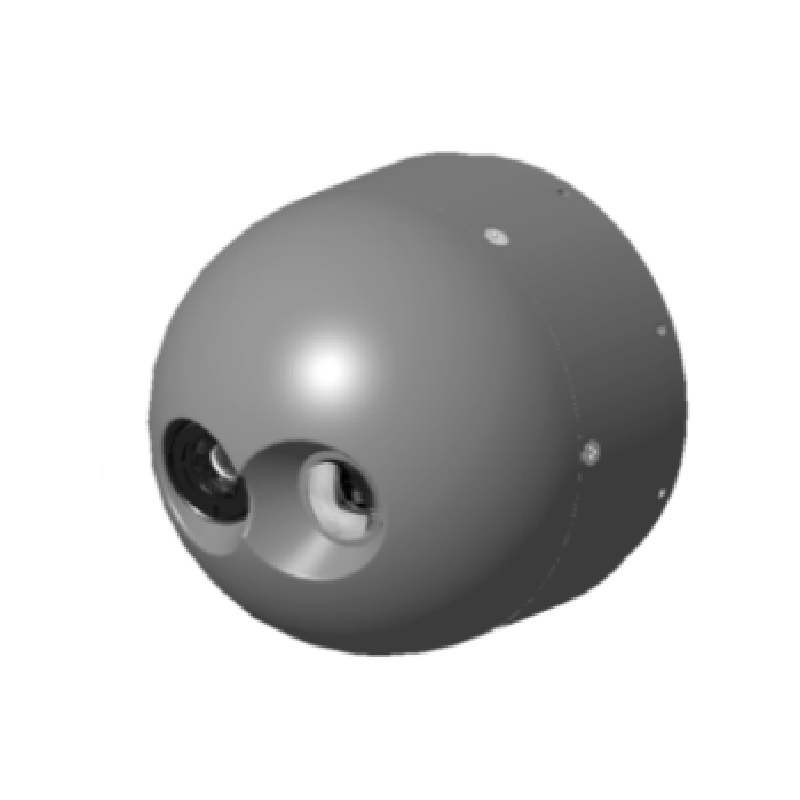

SV-1 Dual-Mode Strapdown Imaging Seeker

Integrates HD visible light and uncooled infrared cameras.

Capable of autonomous search, recognition, and tracking of targets.

Provides target deviation angle from the optical axis for precision guidance.

Compact strapdown design suitable for platforms with space and weight constraints.

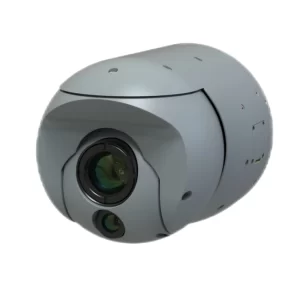

SV-2 Dual-Mode Gimballed Imaging Seeker

Combines HD visible light and uncooled infrared cameras on a two-axis gimbal.

Performs autonomous search, recognition, and tracking.

Measures line-of-sight angular velocity between carrier and target.

Enhances tracking stability and dynamic response for improved guidance accuracy.

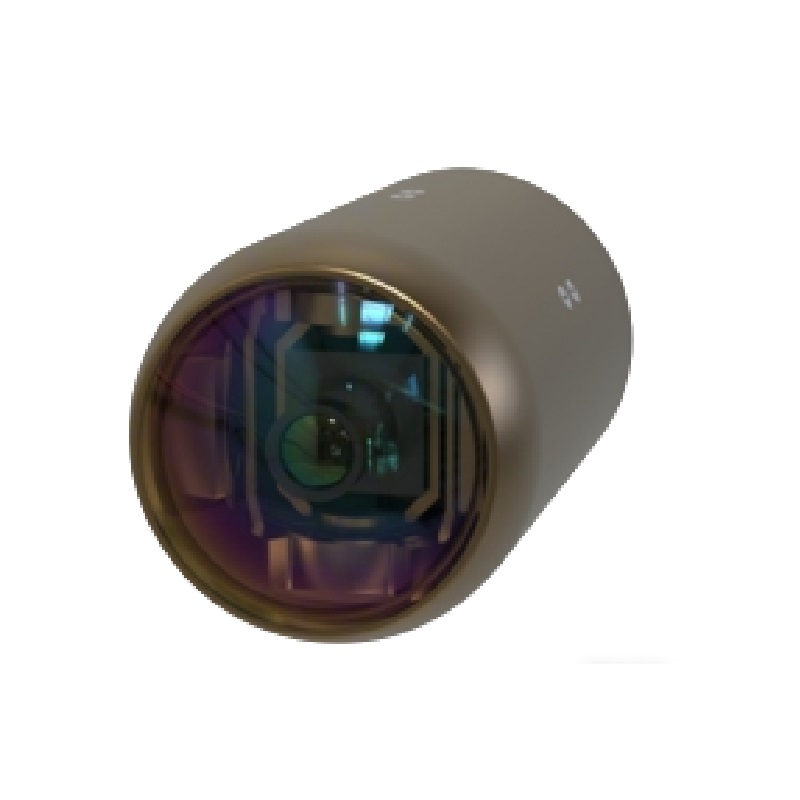

SV-3 Dual-Mode Gimballed Imaging Seeker

Includes radome, visible/infrared cameras, image stabilization, and controller.

Detects and tracks targets based on brightness or thermal signatures.

Measures line-of-sight angular velocity for precision strike guidance.

Integrated stabilization supports clear imaging and tracking in challenging conditions.

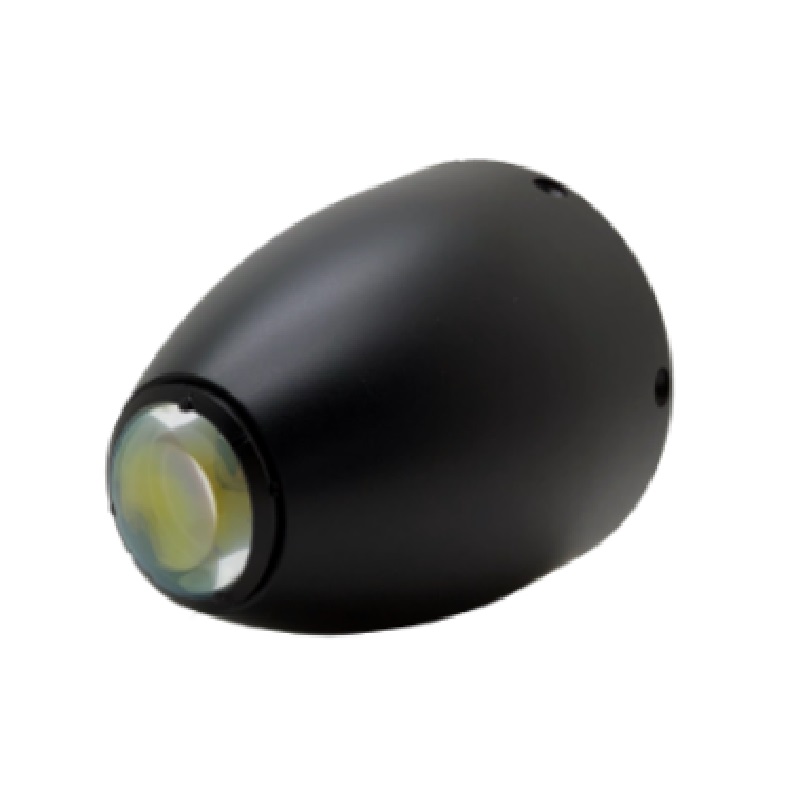

SJ-1 Strapdown Laser Seeker

Rapid target identification and acquisition during terminal guidance.

Provides target deviation angle from the optical axis.

Enables precise strike capability with a simple, robust strapdown layout.

Ideal for high-speed terminal engagement scenarios.

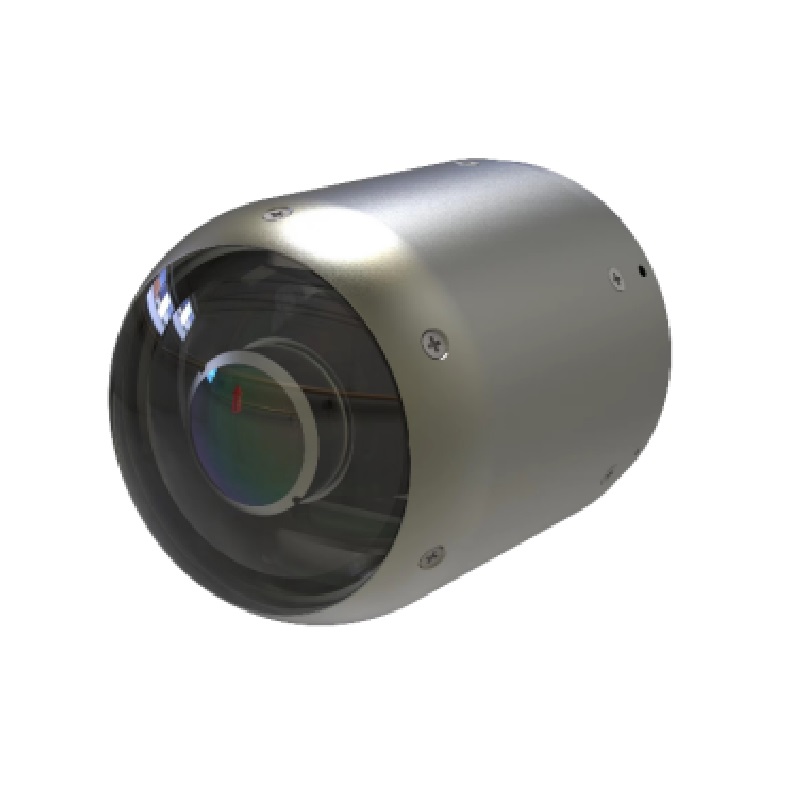

SJ-2 Gimballed Laser Seeker

Performs target recognition, angle calculation, and reacquisition after loss.

Detects, identifies, acquires, and tracks targets in ballistic terminal phase.

Calculates target deviation from optical axis and feeds data to onboard computer.

Real-time feedback control keeps optical axis aligned with the target for continuous tracking.

This series of seekers is designed for integration into various precision-guided systems. Their primary application is in the terminal guidance phase of flight carriers such as missiles, guided projectiles, unmanned aerial vehicles (UAVs), and loitering munitions. They enable these platforms to autonomously detect, identify, track, and precisely engage stationary or moving targets in complex battlefield environments.

	SV-1 Dual-Mode Strapdown Imaging Seeker	SV-2 Dual-Mode Gimballed Imaging Seeker	SV-3 Dual-Mode Gimballed Imaging Seeker	SJ-1 Strapdown Laser Seeker	SJ-2 Gimballed Laser Seeker
Basic Parameters	Weight：≤150g	Weight：≤450g	Weight：≤2000g	Size：(Φ70×88) mm (minimum customizable to Φ40)	Size：(Φ80×104) mm (customizable)
	Size：(Φ80×80) mm	Size：(Φ80×105) mm	Size：(Φ150×200) mm	Weight：≤240g	Weight：≤800g
	Overload Resistance： Longitudinal 300g, Lateral 100g	Overload Resistance： Longitudinal 200g, Lateral 50g	Overload Resistance： Longitudinal 500g, Lateral 50g	Overload Resistance：10000g	Overload Resistance：1000g
Visible Light	Type：CMOS Camera	Type： CMOS Camera	Type： CMOS Camera	/	/
	Resolution：3840×2160	Resolution：3840×2160	Resolution：2560×2048	/	/
	Field of View (FOV)：60°×36° (6mm)	Field of View (FOV)：26°×15° (16mm)	Field of View (FOV)：12.3°×10° (39mm)	/	/
Infrared (Optional)	Type：Uncooled Infrared Detector	Uncooled Long-Wave Infrared Detector	Uncooled Long-Wave Infrared Detector	/	/
	Resolution：640×512	Resolution：640×512	Resolution：640×512	/	/
	Field of View (FOV)：32°×24° (13mm)	Field of View (FOV)：17°×14° (25mm)	Field of View (FOV)：5.8°×4.5° (75mm)	/	/
Detection & Tracking	Line-of-Sight Angle Output Rate：50Hz	Visible Light Oper. Range：Autonomous recognition 1200m,man-in-the-loop lock-on tracking range 2km	Visible Light Oper. Range： Autonomous recognition & reliable tracking of typical vehicle targets ≥2.5km	Operational Range：≥3000m (blind zone ＜50m)	Operational Range：≥3000m (blind zone ≤50m)
	Line-of-Sight Angle Error：≤0.2° (within ±15° FOV)	Infrared Oper. Range： Autonomous recognition 650m,man-in-the-loop lock-on tracking range 1.2km	Infrared Oper. Range： Autonomous recognition & reliable tracking of typical vehicle targets ≥1.8km	Laser Coding：Precision Frequency Code or Pseudo-Random Code	Laser Coding： Precision Frequency Code or Pseudo-Random Code
	Anti-Jamming Capability：≥60°/s	LOS Angle Output Rate：50Hz	LOS Angle Output Rate：50Hz	Detection Accuracy：≤0.3°	Detection Accuracy：≤0.3°
	Visible Light Operational Range：Reliable tracking of typical targets ≥1.5km	Max Tracking LOS Angular Velocity：-20°/s～+20°/s	Max Tracking LOS Angular Velocity： Pitch -20°/s～+20°/s;Yaw -20°/s～+20°/s	Dynamic Output Delay：≤5ms	Dynamic Output Delay：≤5ms
	Infrared Operational Range： Reliable tracking of typical targets ≥1km	Maximum Misalignment Angle：≤0.3°	Maximum Misalignment Angle：≤0.2°	Reacquisition Capability：Re-acquire target within 1s of loss	Reacquisition Capability： Re-acquire target within 1s of loss
Power Supply	Voltage: 18V~32V, Average Power ≤20W	Power Supply：18V~32V, ≤20W	Power Supply：18V~32V, ≤20W
Electrical Interface	Communication Interface：RS422/RS232, 100M Ethernet	Data Output Interface：RS422/RS232, Ethernet	/	/
Operating Temperature	Temperature Range：-40°C ~ +60°C	Temperature Range：-40°C ~ +60°C	Temperature Range：-40°C ~ +60°C	Temperature Range：-40°C ~ +60°C	Temperature Range：-40°C ~ +60°C
Stabilization Gimbal	/	Gimbal Range： Pitch -80°～+25°; Yaw -90°～+90°	Gimbal Range： Pitch -30°～+30°; Yaw -20°～+20°	/	Gimbal Angle Range：-30°～+30° (customizable)
		Isolation：≤2% (3Hz/3°)	Isolation：≤2% (3Hz/3°)		Gimbal Angle Accuracy：≤0.2°
		Gimbal Angle Accuracy：≤0.3°	Gimbal Angle Accuracy：≤0.2°		Isolation：≤2% (3°/3Hz)
Optical Section	/	/	/	Detector Type：Quadrant Laser Detector (Wavelength 1.064μm)	Detector Type： Quadrant Laser Detector (Wavelength 1.064μm)
				Field of View (FOV)：±15°	Field of View (FOV)：±15°
				Linear Region：±10°	Linear Region：±8°
