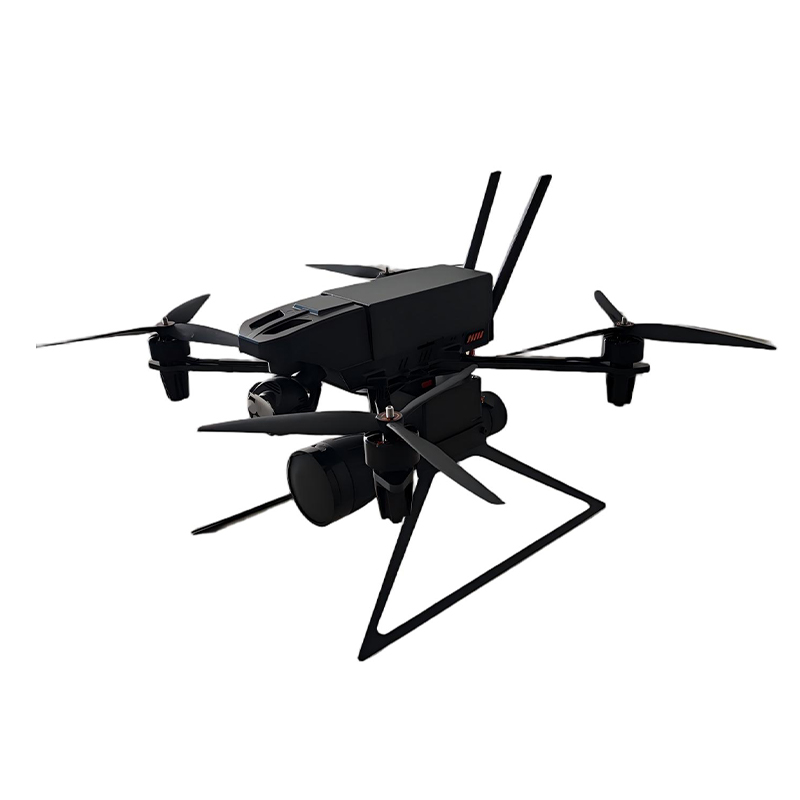

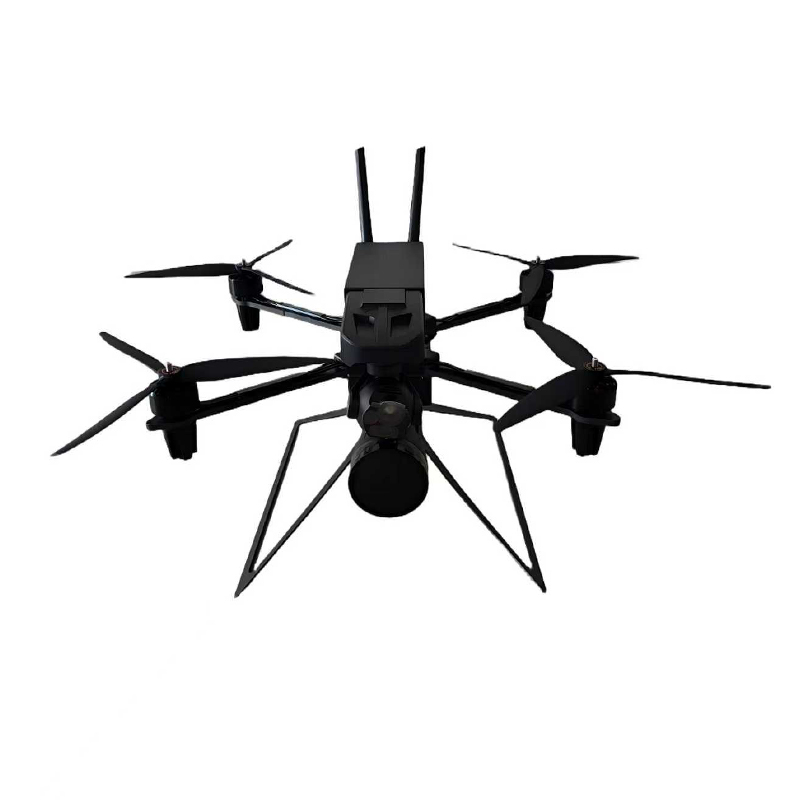

Anti-Drone Capture Net GW10T
Anti-Drone Capture Net GW10T
Anti-Drone Capture Net GW10T
Anti-Drone Capture Net GW10T
Anti-Drone Capture Net GW10T
Anti-Drone Capture Net GW10T

Anti-Drone Capture Net GW10T

Our integrated counter-drone system represents the industry's first complete "Detect-Jam-Capture" solution. Combining advanced radio frequency jamming with precision net capture technology, this intelligent defense network provides seamless protection against unauthorized UAVs. The system automatically detects intruding drones through spectrum monitoring, disrupts their control links using multi-band RF jamming, and physically captures high-value targets with automated net deployment - all while maintaining zero collateral damage and preserving evidence for forensic analysis.

Non-Destructive Neutralization

Forensic Evidence Collection

Adaptive Multi-Layer Defense

Public Safety Compliance

Intelligent Threat Prioritization



OPERATIONAL HIGHLIGHTS

Complete Mission Capability
From detection to physical evidence recovery – providing full mission capability in a single integrated system

Dual-Technology Reliability
RF jamming for area denial combined with net capture for precision engagement ensures mission success against diverse threats

Legal & Regulatory Compliance
Non-destructive approach meets stringent legal requirements for drone mitigation in civilian environments

Evidence Chain Preservation
Maintains intact drones and flight data for intelligence analysis and legal proceedings

Reduced Operational Risk
Eliminates risks associated with kinetic solutions while maintaining positive control over neutralized threats

Scalable Deployment
Modular architecture allows customization for fixed sites, mobile platforms, and temporary security perimeters

ParameterSpecification
Aircraft
Aircraft Weight (w/o battery)950 g
Net Launcher Weight1300 g
Dimensions (w/o propellers, L*W*H)369 * 313 * 80.5 mm
Dimensions (with propellers, L*W*H)578.5 * 528.7 * 80.5 mm
Propeller Size1050
Diagonal Wheelbase430 mm
Input Voltage6S (26.1V)
Battery Capacity8000 mAh
Battery Weight815 g
Max Ascent Speed10 m/s
Max Descent Speed10 m/s
Max Horizontal Flight Speed (no wind)30 m/s
Max Endurance35 min
Operating Temperature0 – 45 °C
GNSSGPS+GLONASS+Galileo
Operating Frequency2.4G/5.8G
RF Power24 dBm
Hover AccuracyHorizontal: ±1m (with normal GPS)
Max Video Transmission Range20 km
Visible Light Camera
Lens Pixel500 W
Lens Specification1/2.8 inch
ApertureF2.2
HFOV / VFOV / DFOV100° / 52° / 122°
Zoom30x Digital Zoom
Video Transmission Resolution1280 * 720
Recorded Video Resolution2880 * 1620
Video FormatMP4
Photo Resolution2880 * 1620
Photo FormatJPEG
Supported Memory CardMicroSD (Max 128 GB)
File SystemFAT32
Thermal Imaging Camera
Resolution640 * 512
Frame Rate≤ 30 Hz
Thermal Time Constant< 10 ms
Focal Length9.1 mm
ApertureF1.0
FOV77.4° / 48.8° / 85.6°
Pixel Pitch12 μm
Detection Range1.1 km
Spectral Range8 ~ 14 μm
Laser Rangefinder
Eye SafetyClass 1
Wavelength905 nm
Laser Divergence5 mrad
Transmitter Aperture10 x 7.5 mm
Receiver Aperture15 x 10 mm
Range5 m ~ 1000 m
Accuracy± 1 m
Measurement Frequency1 ~ 5 Hz
Success Rate≥ 98%
Net Launcher
Optimal Effective Range8 – 10 m
Training NetDiameter 3 m radial net
Capture Net3 * 3 m, 15-mesh woven net
Mesh Size150 * 150 mm
Net Load Capacity17 kg
Gas Cylinder16 g

Critical Infrastructure Protection
Provides complete perimeter security for nuclear plants, chemical facilities and power stations using non-destructive drone capture that eliminates explosion risks and maintains operational safety.

Urban Security & Public Event Protection
Ensures crowd safety during major public events and political gatherings through socially acceptable drone mitigation that prevents panic while delivering forensic evidence of malicious intent.

Border Security & Law Enforcement Operations
Supports border patrol and law enforcement missions with evidence-preserving drone capture, enabling intelligence gathering and prosecution of smuggling activities.

Military Base & Sensitive Site Security
Delivers multi-layer defense for military installations using adaptive counter-drone tactics that combine area denial with precision physical capture of high-value surveillance drones.

Corporate Espionage Prevention
Protects intellectual property at R&D centers and manufacturing facilities by capturing intact drones for forensic analysis and legal action against industrial espionage.

Prison Security & Contraband Interdiction
Prevents drone-based contraband delivery to correctional facilities through reliable detection and safe capture of delivery drones with preserved evidence.

VIP Protection & Executive Security
Provides discreet protection for high-profile individuals and corporate executives using non-destructive methods that avoid public attention while ensuring complete safety.

Airport Perimeter Security
Enhances airport safety beyond traditional jamming with physical capture capability for drones that pose critical threats to aircraft operations.

Counter-Terrorism Operations
Supports special forces in anti-terror missions with evidence-preserving drone neutralization for intelligence gathering and threat assessment.

Industrial Complex Monitoring
Safeguards refineries and manufacturing plants through environmentally-safe drone capture that prevents ignition risks in hazardous areas.
