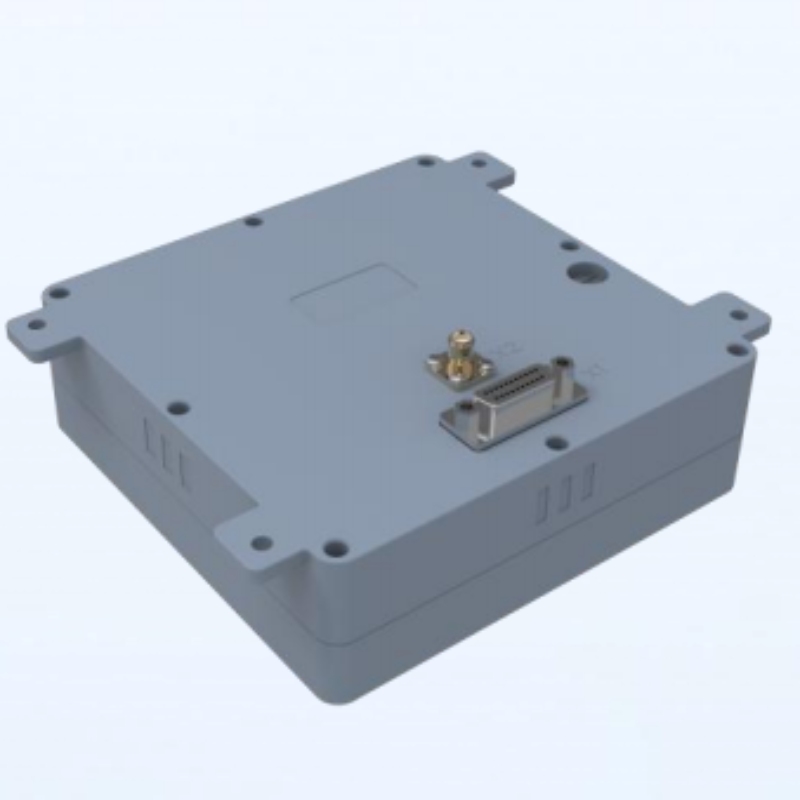

Anti-jamming antenna AJ440

The AJ440 Series is a high-performance, integrated anti-jamming antenna solution. It combines a Controlled Reception Pattern Antenna (CRPA) and a Digital Antenna Control Unit (DACU) internally, powered by a self-developed anti-jamming System-on-Chip (SoC). Its built-in polarization-space-time-frequency joint anti-jamming algorithm can simultaneously suppress up to three complex interference sources across multiple frequency bands. This provides UAV platforms with a clean, continuous GNSS signal, ensuring flight control safety and mission reliability.

Anti-Jamming capacity

Protected Frequencies

Jamming Types Suppressed



OPERATIONAL HIGHLIGHTS



Dual-Band Robust Protection for Mission Assurance: Unlike single-band solutions, the AJ440 provides concurrent protection for key UAV navigation frequencies like L1 and L2. This dual-layer defense not only counters intentional jamming but also mitigates common co-frequency interference, ensuring reliability for critical military reconnaissance, logistics delivery, and swarm operations.

Guarantees High-Precision Positioning Performance: By purifying and outputting multi-frequency signals like L2, the AJ440 establishes a solid foundation for drones equipped with Real-Time Kinematic (RTK) or Precise Point Positioning (PPP) modules. This ensures centimeter-level accuracy essential for surveying, mapping, and precision agriculture applications.

Adaptive & Intelligent Anti-Jamming: The built-in advanced algorithm continuously senses the interference environment. It automatically generates optimal “nulls” across polarization, space, time, and frequency domains to precisely suppress jammers without manual intervention, significantly enhancing UAV survivability in dynamic, complex settings.

Integrated, Lightweight Design: The highly integrated architecture reduces external cables and separate processing units. This simplifies integration onto UAV platforms, minimizing weight and power consumption—crucial factors for payload and space-sensitive drone designs.

ModelAJ4402AJ4403AJ4404-L2G2AJ4404-B2L2AJ4404-B3G2
Anti-jamming FrequencyB1/L1/E1(1559 ~ 1592MHz)
L2(1217~1237MHz)
B1/L1/E1+G1(1558~1609MHz)
G2(1235~1255MHz)
B1/L1/E1+G1(1559~1602MHz)
L2+G2(1224~1260MHz)
B1/L1/E1+G1(1559~1602MHz)
L2+B2(1196~1230MHz)
B1/L1/E1+G1(1559~1602MHz)
B3+G2(1240~1280MHz)
Combined SignalB1/L1/E1 + L2B1/L1/E1+G1+G2B1/L1/E1+G1+L2+G2B1/L1/E1+G1+L2+B2B1/L1/E1+G1+B3+G2
Output power:-60dBm ~ -50dBm
Anti-jamming Typenarrowband, wide band, pulse, sweep-frequency, composite interference
Anti-jamming PerformanceJamming-to-Signal Ratio(@-130dBm):1-interference ≥100dBc
3-interference ≥90dBc
Dimension130mm*130mm*40mm
Weight≤500g
Power supply+9V ~ 32V
Power Consumption≤14W≤15.5W≤15.5W≤15.5W≤15.5W
Operation Temperature-40℃~+85℃
Storage Temperature-55℃~+85℃

The AJ440 Series is the ideal choice for high-demand UAV applications including:

Defense & Security: Military reconnaissance and electronic warfare UAVs operating in contested environments.

Critical Infrastructure Inspection: Drones inspecting power grids, energy pipelines, and communication towers near complex electromagnetic sources.

Public Safety & Disaster Relief: Firefighting and search-and-rescue drones operating in emergency scenarios with dense and chaotic communications.

High-End Commercial & Industrial Drones: Missions requiring utmost navigation continuity and precision, such as large-scale surveying, precision agriculture spraying, and autonomous logistics.
